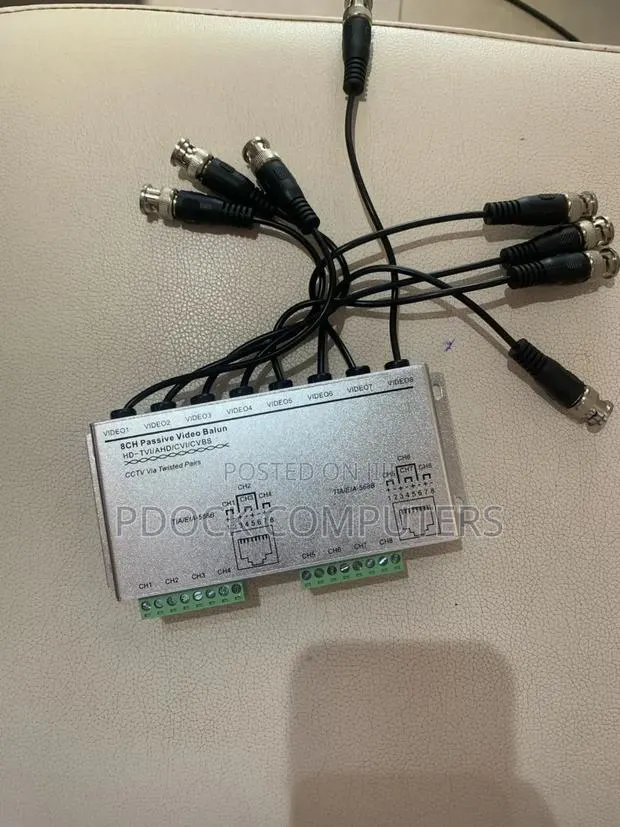

8-Channel Utp Rj45 Passive Video Balun Transceiver

Sold by PDOCK COMPUTERS · Adenta

Compatible with all hd-cvi,hd-tvi,hd-ahd to send hd-cvi,hd-tvi,hd-ahd camera 720p up to 300 meters over utp cable. built-in transient suppression protection up to 450m for 720p cvi cameras up to 250m for 1080p cvi cameras up to 250m for 720p/1080p tvi cameras up to 320m for 720p ahd cameras ntsc,pal,and secam video formats no power required transmission signal: 8 channel transmission distance: 300m coaxial video connector: bnc-m twisted-pair video connector: screw interface compatible format: pal,ntsc,secam signal transmission band: 0-6mhz(-3db) anti-interference: >60db coaxial video interface protection: 4kv(common-mode)per:iec61000-4-5 twisted-pair video transmission interface protection: 2kv(different-mode), 4kv(common-mode)per:iec61000-4-5
