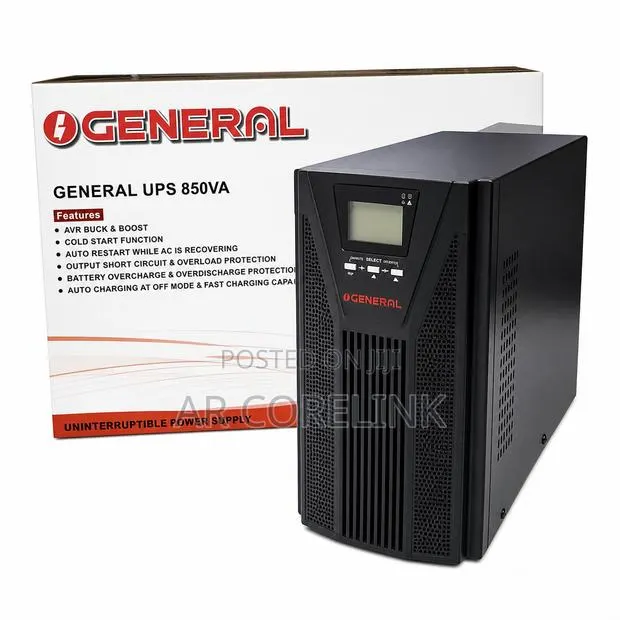

GENERAL 850VA / 230 Vac / 50Hz UPS

Sold by AR CoreLink · Accra Metropolitan

Wide input voltage range Compatible with generators Overload protection Short circuit protection Built-in AVR Battery deep discharge protection & overcharge protection Specification Rating input voltage 230VAC ±10% Rating input frequency 50/60Hz ± 5% Input phase Single-phase Input socket With Fuse Cold Start (0 to 100% load) Press the ON/OFF Switch Input Range (220V) 140-300 Rating output (VA) 140-300 Rating output (VA) 850VA Rating output (W) 420W Waveform Battery Mode (simulated sine wave), AC mode (sine wave) Power factor 0.6 Rating output voltage (V) 230VAC ± 10% Output Range 20Vac-7% to +15% in battery mode Rear output socket 3 x Universal – Battery backup Transfer time TYPICAL 8-10ms Line Mode Synchronize with the utility
