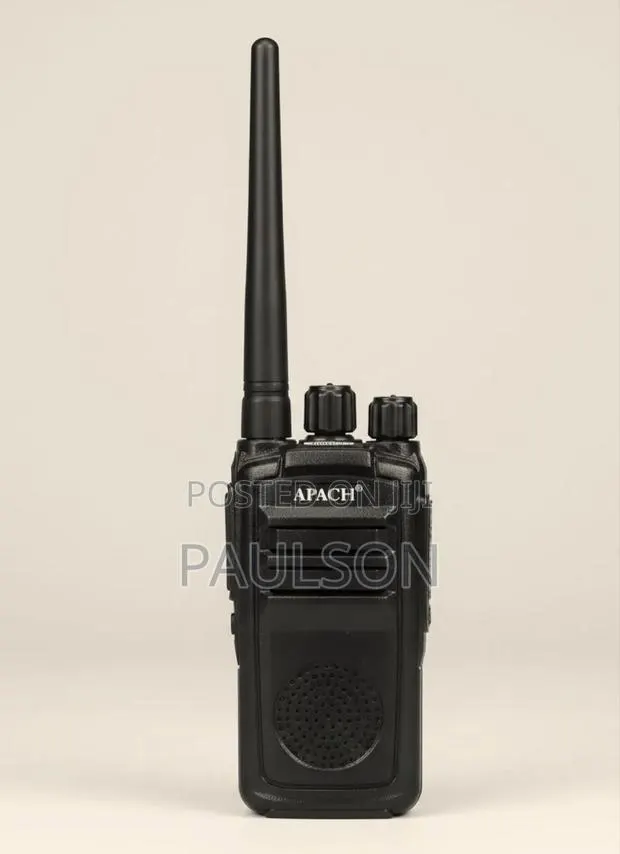

Apach 2 Way Radio Transmitter

Sold by Paulson · Madina

The APASH A 6-R two-way radio transmitter kit has the following specifications: UHF frequency range 400-470 MHz, Channel capacity 16, Channel spacing 25 kHz, Operating voltage 3.7 V, H-1500 mAh Li-ion battery, Battery life (5-5-90 duty cycles) approximately 8 hours, Frequency stability τ 2.5 ppm, Operating temperature -30°C to +60° C, 50 ohm antenna impedance, Dimensions (length x width x height) (with battery, without antenna) 110 x 50 x 32 mm, Communication range 5 km , Transmitter: RF power 5 W, Modulation F3E, Spurious emission 65 dB, FM noise -45 dB(W) - Audio distortion 40 dB(N) 5%, Transmit current 1.3 A, Receiver: Sensitivity (12dB SINAD) 0.20 μV, Selectivity 55dB/50dB Intermodulation 65dB Adjacent Channel Selectivity 60dB FM Noise 45dB/40dB Audio Output Power 1000mW Audio Distortion 5% Quiescent Current 15mA (with battery
