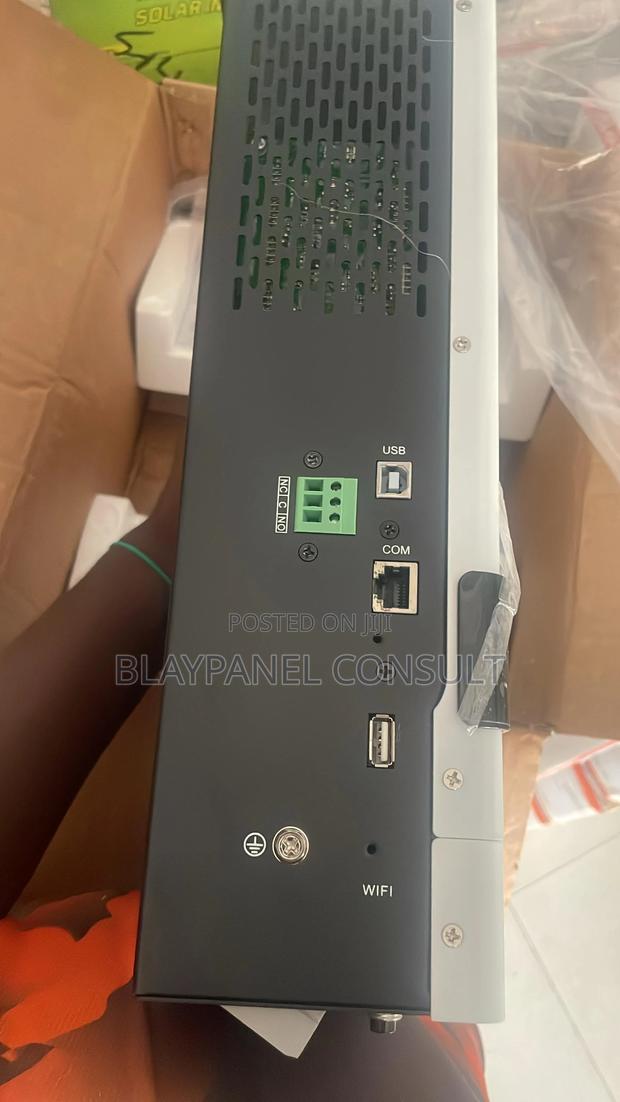

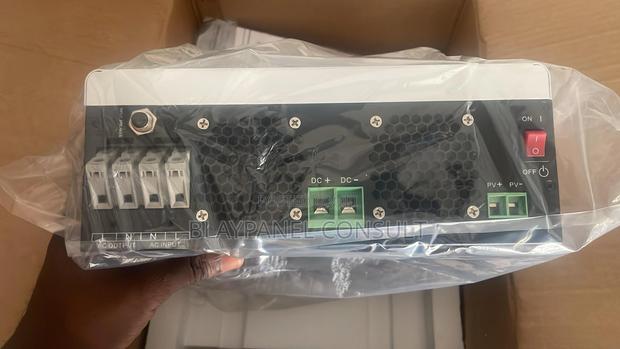

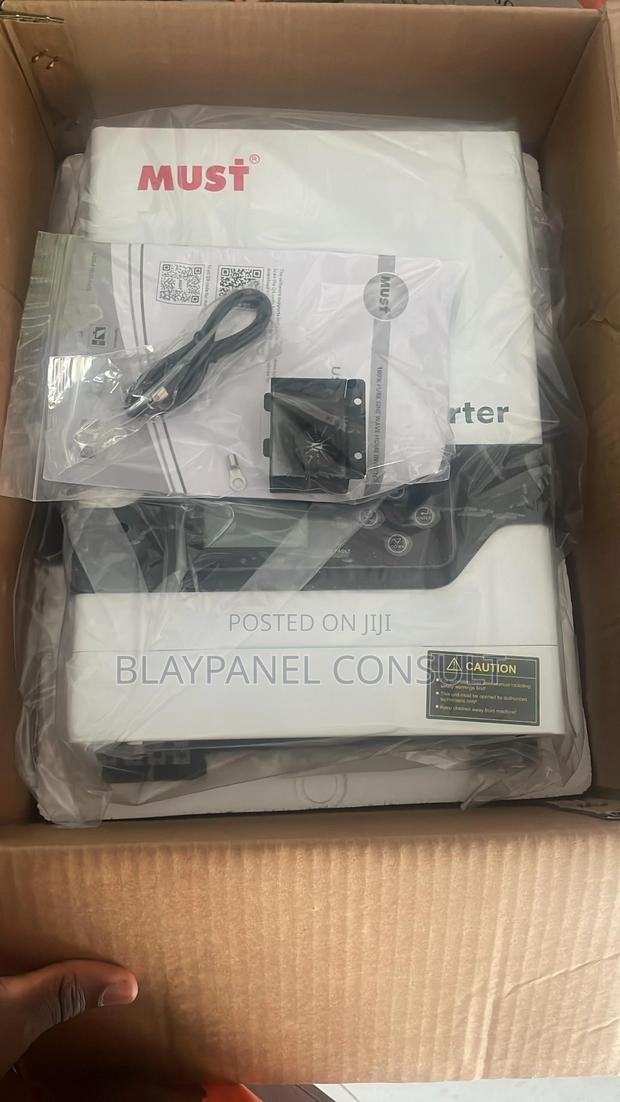

3kw Must Hybrid Solar Inverter

Sold by Blaypanel Consult · Accra Metropolitan

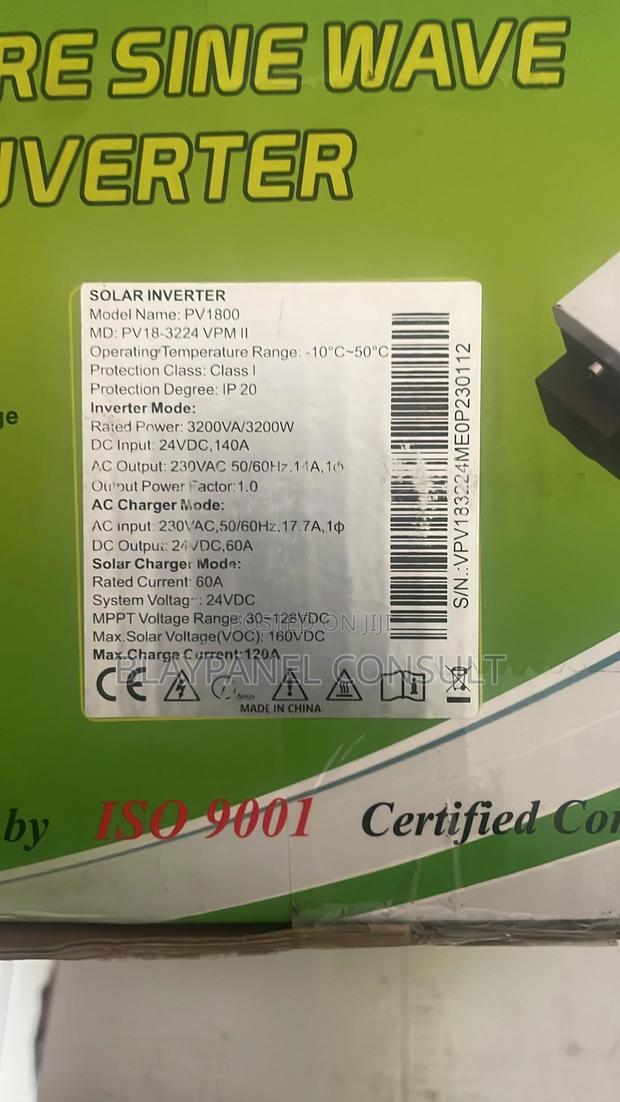

Solar inverter model name: pv1800 md: pv18-3224 vpm ii operating temperature range: -10°c-50°c protection class: class i protection degree: ip 20 inverter mode: rated power: 3200va/3200w dc input: 24vdc,140a ac output: 230vac 50/60hz,11a, 10 ou put power factor:1.0 ac charger mode: ac input: 230vac,50/60hz.17.7a, 1ф dc output: 24 vdc,60a solar charger mode: rated current 60a system voltag*: 24vdc mppt voltage range: 30-128vdc max. solar voltage(voc): 160vdc max.charge current:120a
