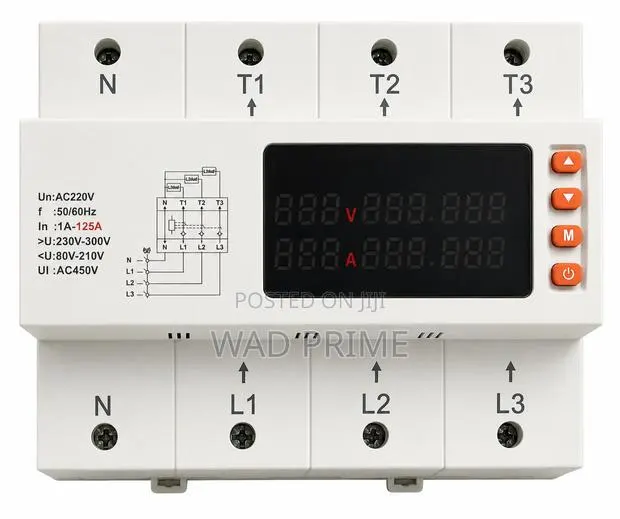

Automatic Voltage and Current Protector 125a

Sold by WAD PRIME · Tema Metropolitan

3-phase voltage & current protection device Microcontroller-based, digital display DIN rail mounting (8 modules) Rated voltage: AC 220V Operating range: 3P+N 65V – 450V Frequency: 50 / 60 Hz Insulation voltage: AC 450V Adjustable current: 1A – 125A Max permissible current: 150A Over-voltage Under-voltage Overcurrent Short-circuit Phase loss & phase sequence 3-phase asymmetry Over-temperature (overheat) Synchronous mode Asynchronous mode Adjustable delays (voltage, current, short-circuit) Auto-reclose: ON / OFF Continuous overcurrent trips: OFF or 1–20 Phase sequence protection: ON / OFF Factory reset available Manual ON / OFF Min voltage trip time: 0.02s Short-circuit trip: 0.04s Power-on delay: 1 – 300s Reclose delay: 1 – 600s Terminal size: 4 – 50 mm2 Torque: 3.5 Nm Protection class: IP20 Operating temp: –20°C to +55°C
