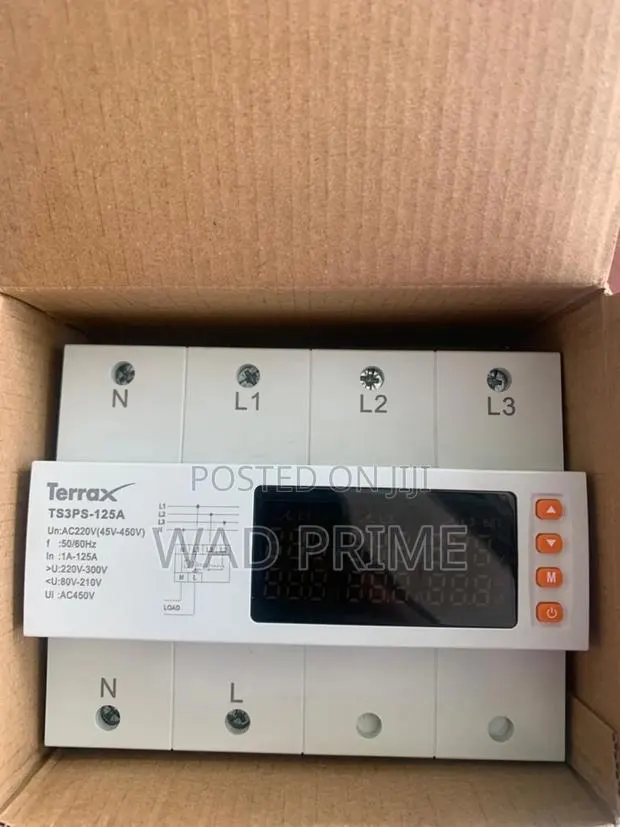

Automatic Phase Selector 125a

Sold by WAD PRIME · Tema Metropolitan

Automatic 3-phase selector (L1 / L2 / L3) Digital display (Voltage, Current, Faults) True RMS measurement Rated voltage: AC 220V Operating range: AC 45V – 450V Frequency: 50 / 60 Hz Insulation voltage: AC 450V Output contact: 1 NO Adjustable current: 1A – 125A Max permissible current: 150A Over-voltage: 220V – 300V Under-voltage: 80V – 210V Overcurrent protection Short-circuit protection Neutral loss detection Start / reclose delay: 5 – 600s Phase switch delay: 0 – 20s Return-to-priority delay: 5 – 600s Short-circuit delay: 0 – 5s Continuous overcurrent trips: OFF or 1 – 20 Priority phase selectable (L1 / L2 / L3 / OFF) Automatic return to priority phase Terminal size: 4 – 50 mm2 Torque: 3.5 Nm Protection class: IP20 Operating temp: –20°C to +55°C Altitude: up to 2000 m Password protection (000 – 999) Manual ON/OFF control
