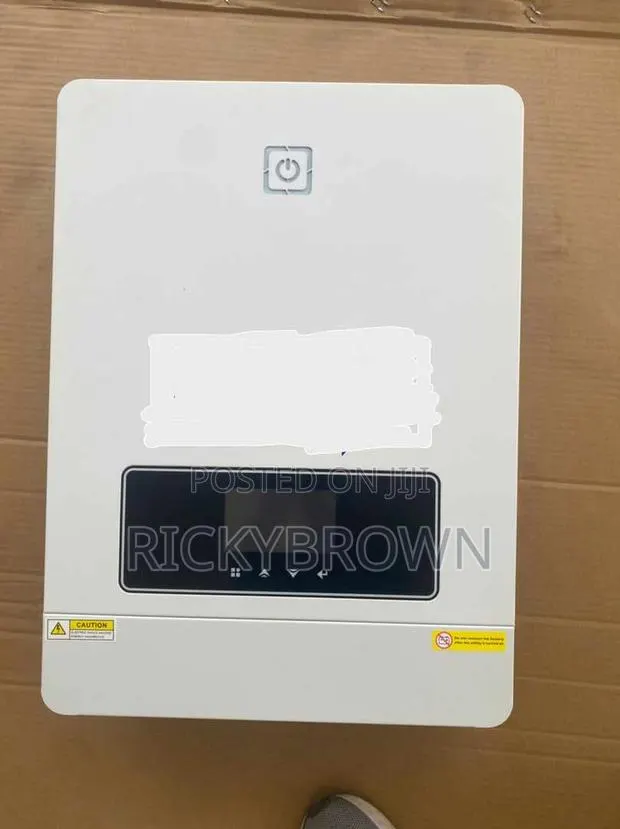

48v 10,200 Watts (10.2 Kw) Solar Hybrid Inverters

Sold by rickybrown · Ashaley Botwe

Model name: victor max-10.2kw model number: max-10.2kw-m pv input: nominal operating voltage. 360vdc vmax pv:500vdc pv input voltage range:90-450vdc full load mppt range.360~450vdc maximum pv input power:5400w+5400w maximum solar charging current: 160a grid/ac output: nominal output voltage:vac feed-in grid voltage range: 195~253vac feed-in grid frequency range: 49~51+1hz nominal output current: 44.3a power factor range: >0.99 maximum conversion efficiency(dc/ac) 98% two load output power: full load: 10200w maximum main load: 10200w maximum second load: 3400w main load cut off voltage:52vdc main load return voltage:54vdc ac input: nominal operating voltage:230vac maximum input current:50a nominal operating frequency: 50/60hz surge power: 20400va maximum ac charging current: 140a battery: battery voltage :48vdc
