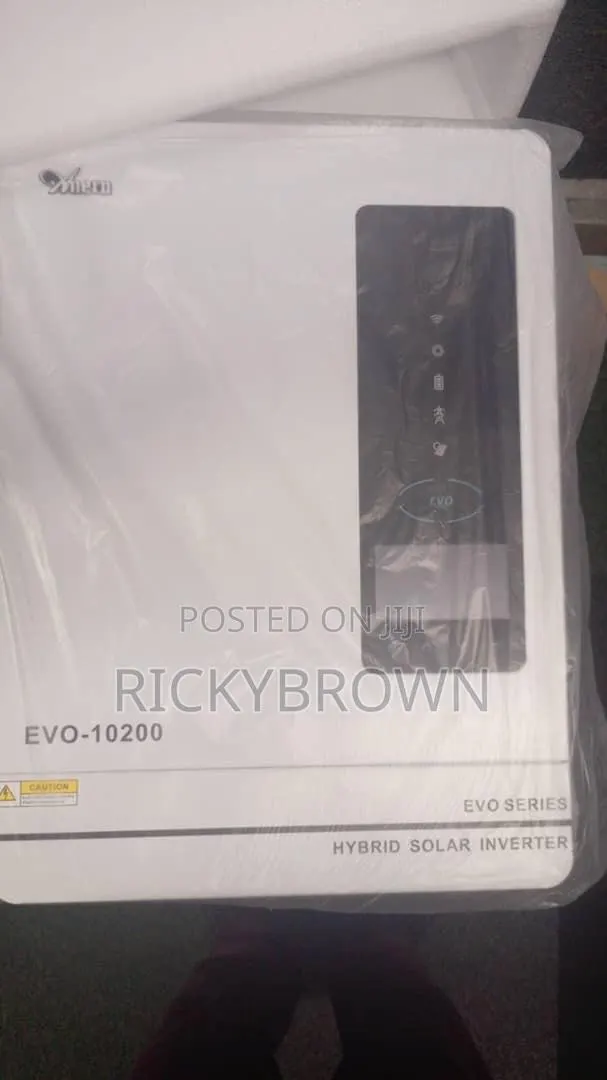

48v 10,200 Watts (10.2 KW) ANERN HYBRID INVERTERS

Sold by rickybrown · Ashaley Botwe

Pv input: nominal operating voltage 360vdc vmax pv 500vdc pv input voltage range 90-450vdc imax pv/channels: 18:0a/2channels full load mppt range 360-450vdc maximum pv input power: 5400w+5400w maximum solar charging current: 160a grid/ac output: nominal output voltage vac feed-in grid voltage range: 195-253vac feed-in grid frequency range 49-51$1hz nominal output current 44.3 a maximum conversion efficiency(dg/ac) 98% two load output power: full load: 10200w maximum main load: 10200w maximum second load: 3400w main load cut off voltage: 52vdc main load return voltage:54vdc ac input: nominal operating voltage: 230vac maximum input current.50a nominal operating frequencyt: 50/60hz surge power 20400va maximum ac charging current 140a battery voltage 48vdc maximum battery current: 212 5a
