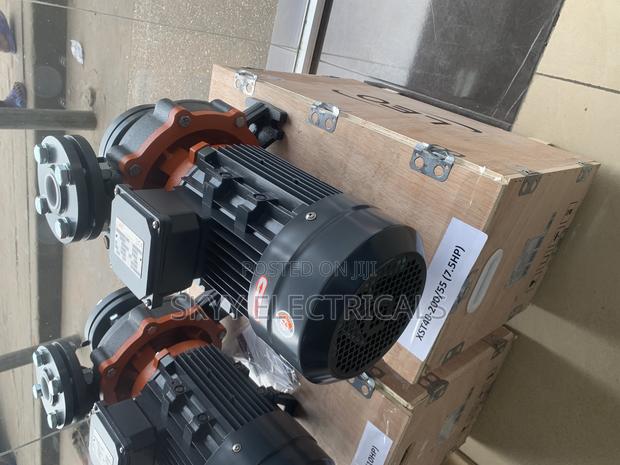

Leo Xst-40/200/75 Standard Centrifugal Pump [3 Phase] (7.5kw/10hp)

Sold by Skyy Electricals · Adabraka

Delivery: up to 220m3/h Head: up to 95 m Liquid temperature: Standard -10°C to 85 °C Maximum operating pressure: 12 bar (PN12) Anti-clockwise rotation when facing pump's suction port Impeller: AISI304/HT200 Mechanical seal in compliance with DIN 24960 Lubricated by internal recirculating pumped liquid Counter flange available on request Closed construction, external ventilation Insulation class: F Protection class: IP54 Performance in compliance with CEI 2-3 (IEC 34.1) Max. ambient temperature: +40°C Overload protection
