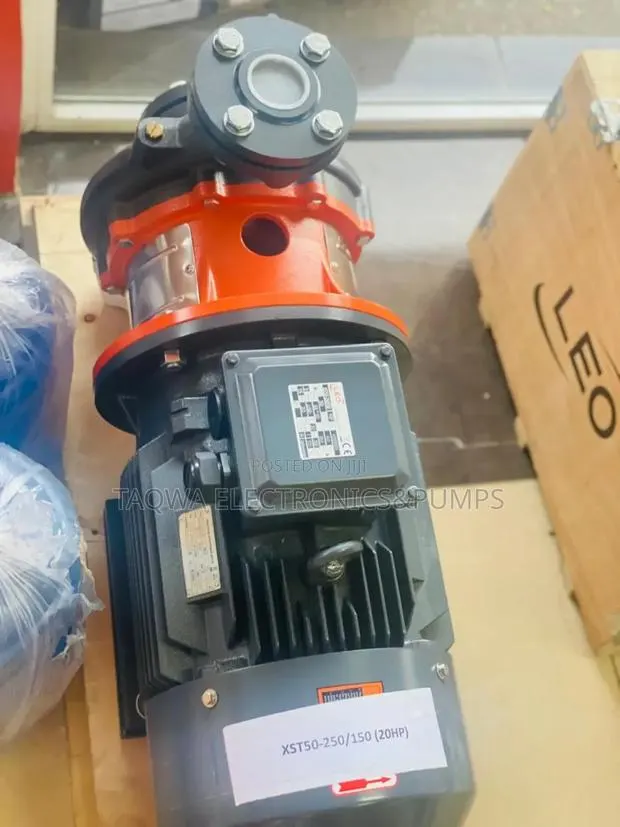

Capacity ;20hp,15kw Leo Surface Pump

Sold by TaQwa Electronics&pumps · Alajo

LEO 20HP CENTRIFUGAL PUMP XST50‐250/150* pump: - *Power:* 15 kW (20 HP), three‐phase 380 V, 50 Hz - *Rated flow:* ~250 m3/h (≈ 69 L/s) - *Rated head:* 50 m (≈ 5 bar) - *Max flow:* up to 300 m3/h - *Max head:* about 65 m - *Impeller:* stainless‐steel (AISI 304) - *Pump body:* cast iron, epoxy‐coated - *Mechanical seal:* double‐acting, SiC vs. carbon, suitable for up to 12 bar - *Inlet/outlet:* DN 150 / DN 100 - *Motor protection:* IP55, class F insulation, built‐in thermal overload - *Speed:* 2,900 rpm (2‐pole) - *Weight:* ~210 kg (dry)
