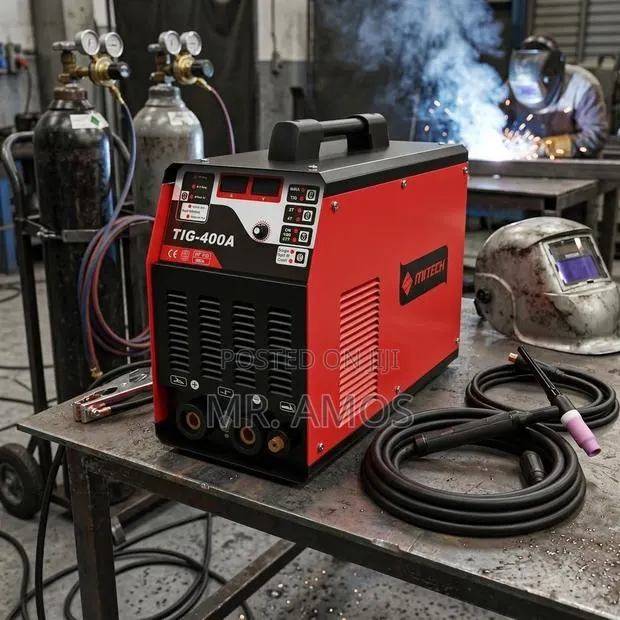

400A TIG Inverter Welding Machine 380 Volts

Sold by Mr. Amos · Accra Metropolitan

Input & power requirements input voltage: 3-phase ac 380 v ± 15% (50/60 hz) rated input capacity: 13.3 kva rated input current: 20.2 a power factor: 0.93 generator requirement: approximately 18.2 kva output & performance specs welding current range: 30 a–320 a (continuous operation) peak output current: 400 a rated output voltage: 32.8 v no-load voltage (u0): 64 v duty cycle: 60% at 40°c cable drive capacity: able to run up to 100 m welding cables without notable voltage drop protection & physical features insulation / protection class: class f / ip21s safety features: built-in vrd (voltage reduction device), phase-loss protection, thermal overload (o.h), and over-current (o.c) protection dimensions (l × w × h): 450 mm × 220 mm × 343 mm net weight: 13 kg
